Nissan CA engine Overview Production 1982-1991 Layout 1.6L 1.8L 2.0L alloy alloy SOHC & DOHC Combustion Single (CA18ET, CA18DET) system Carburetor (CA16S, CA18S, CA20S) Throttle body fuel injection (CA18i) Multi port fuel injection (CA16DE, CA18DE, CA18ET, CA18DET, CA20E) Water-cooled Chronology Predecessor & Successor (all except CA16) (CA16) The CA engine is a 1.6 L to 2.0 L from designed for a variety of smaller vehicles to replace the and some smaller, four-cylinder series engines. It is an iron block, aluminum head design with a timing belt, cheaper to make than the timing chain setup on the Z and L engines. Earlier versions featured and eight valves. The new CA block design was a scaled-up series block with timing shaft and other ancillaries removed. The oil pump is fitted directly onto the crank nose and the distributor is driven by the end of the camshaft. Like the E series and the block from which the E was derived, Nissan used a taller block for the largest stroked 2.0-litre engine. The CA was designed to be compact and light, with a CA16 requiring only 195 litres of space (compared to 280 litres for the earlier ), while weighing 23% less at 115 kg (254 lb).

The engine was called the 'CA' series for Clean Air, due to the installation of Nissan emission reducing technology, called. Later versions featured with 16 valves for increased efficiency at high engine speeds and a smoother power delivery. The hydraulic lifters are interchangeable between all and series engines accepting those with solid lifters. The motor was expensive to produce being cast iron, Production ceased in 1991. The 1.8 L and 2.0 L versions were replaced by the series as the primary Nissan four-cylinder engine, while the smaller 1.6 L was replaced by the. Engines for the low volume American and European markets, were supplied by the overstock between Japanese and Australian markets.

Contents[show] CA20E The SOHC 2.0 L. Nissan CA20 engine. Classic editor History Talk (0) Share. CA20; Engine; Manufacturer Nissan: aka Type aka here. Melling Oil Pumps has been a world class manufacturer of oil pumps, oil pump repair kits, pick-up screens and intermediate shafts.

Contents. CA16S The CA16S is a 1.6 L (1598 cc) water cooling serial 4-cylinder OHC engine. It produces 81 PS (60 kW; 80 hp) at 5200 rpm and 123 N⋅m (91 ft⋅lbf) at 3200 rpm.

Applications:. 1989 U11 - 90 PS (66 kW; 89 hp), 13.6 kg⋅m (133 N⋅m; 98 lb⋅ft). 1985-1990 T12/T72. 1986-1990 T12 '1.6Vc', '1.6Mc'. 1986-1990 JDM T12 'Supreme 1.6'.

88 PS (65 kW; 87 hp), double-barrel carburator CA16DE The CA16DE is a 1.6 L (1598 cc) engine produced from 1987 through 1989. It produces 122 hp (91 kW) at 6400 rpm and 137 N⋅m (101 ft⋅lbf) at 5200 rpm. Bore and stroke is 78.0 mm (3.07 in) and 83.6 mm (3.29 in). It was a 16-valve engine with multiport, for use. North American versions used Nissan's NICS (Nissan Induction Control System), which opened up the secondary intake ports to each cylinder via a butterfly valve in each port. Activated at 3,900 rpm, this improved flow and performance resultingly. Additionally, on activation of the secondaries under a heavy load the fuel injection also went from sequential mode to simultaneous-pulse mode.

These features were also found on North American CA18DE engines. Applications:. NX SE (United States and Canada). (Australia and Japan).

B12. N13 (Europe). N13 X1 Twincam (Japan). N13 SR Twincam (New Zealand) CA18(i) The CA18(i) is a naturally aspirated engine it delivers 91 hp (68 kW) at 5200 rpm. The fuel in this engine is not delivered via Multi Port Fuel Injection (E letter code on MPFI engines), it's instead delivered by Throttle Body Fuel Injection hence the (i) letter on the engine code. 83.0 x 83.6 mm bore and stroke, 1,809 cc (110.4 cu in). Applications:.

R31, R32 GXi (100 hp). C33.

T12 series, '1.8Vi', 1.8Mi', 1.8Xi'. RNU12. With minor changes to lower engine displacement from original 1809 cc to 1796 cc (bore: 82.7 mm). CA18 for Arex was delivered with Lucas multi port Fuel Injection CA18E The CA18E is a naturally aspirated, 1809 cc, single-cam engine. It uses Multi Point Fuel Injection. Applications. 1.8 SSS-E (U11) - 115 PS (85 kW; 113 hp) at 5600rpm, 16.5 kg⋅m (162 N⋅m; 119 lb⋅ft) at 2800rpm.

19.08 1.8 TI (R30) CA18S. The CA18DE is a 1.8 L DOHC 16v (1809 cc) engine produced from 1987 through 1989. It produces 131 hp (98 kW) at 6400 rpm and 159 N⋅m (117 ft⋅lbf) at 5200 rpm. It has the same head as the CA18DET, however it did not use piston oil squirters that are found on the CA18DETs. A crank girdle as found on all CA18DET's is fitted to some versions for some markets, Nissan's parts data system 'FAST' has to be consulted or the sump removed to determine if it's fitted. Applications:.

NX SE (United States and Canada). (Australia & Japan).

1985-1991 HR31 1800I(Japan). 1989-1990 / P/S13. Mid 1980s N13 (UK) (129 hp) (no girdle). Mid 1980s B12 Coupe (UK) (129 hp) (has girdle). Late 1980s T72 (UK) (129 hp). (Sept'87 - Oct'89) RNU12 (FWD & AWD). 1985-1990 '1.8Xt TwinCam' (has girdle).

1988-1991 kn13 (Australian market) production went all the way through to January 1991. The 1.8 L (1809 cc) CA18ET produces 135 hp (99 kW) and 141 lbft (183 Nm) from a single T2 which did not feature an (Autocar 1986). It was built from 1984 through 1990. The engine has fuel delivered via Multiport Fuel Injection.

It was used in the following vehicles:. 1984-1986 Turbo (US) (until 1988 in Canada). 1984-1986 U11 Turbo (UK Market). 1983-1985 U11 SSS-X (Japanese Market) - 135 PS (99 kW; 133 hp) at 6000rpm, 20.0 kg⋅m (196 N⋅m; 145 lb⋅ft) at 3600rpm. 1986-1988 (Japanese Market). 1986-1990 T12/T72 Turbo (UK Market). 1985-1990 1.8Xt.

Mid 1980s S12 (UK Market). 1986-1990 1800Ti. 1990-1992 1800Ti. Japan market CA18DET. The 1.8 L CA18DET was the last version of the CA engine to be released. It produces 167 hp (124 kW) and 166 lbft (228 Nm). It received a brand new aluminum head with 16 valves.

The was also upgraded to a Garrett T25 (.48 A/R) unit for increased flow capacity, and as such, was fitted with an to help prevent the onset of pre-ignition and/or detonation. Fuel was delivered via Multiport Fuel Injection. Bore is 83 mm (3.3 in), and stroke is 83.6 mm (3.29 in).

An electronically controlled fuel injection system was used with 370cc injectors. It was used in the following vehicles:. 1987-1988 RS-X. 1989-1990 /180SX S13 (International market).

1987-1989 RNU12 SSS ATTESA Limited (Japanese Market). 1989-1994 RS13-U Europe.

1985-1990 '1.8Xtt' and 'Euroform Twincam Turbo' There were 2 versions of the CA18DET available, yet only one was produced for Japan. The late model Japanese CA18DETs received 8 port (low port) heads, with butterfly actuated auxiliary ports in the lower intake manifold which corresponded with 8 ports in the head. 3,800 rpm, only one set (4 ports open, 1 per cylinder) of long, narrow ports would be open, accelerating the intake charge to the cylinder. This allowed for quick spool and good low end tractibility. At the 3800 rpm change over, not only would the ECCS shift into batch fire (as opposed to sequential) fuel injection, but it also opened the second set of short, wide ports (8 ports open, 2 per cylinder) which assisted in high RPM flow.

This motor is known for stronger torque characteristics, as well as faster spool at lower RPMs. However, due to displacement-based taxation and cost of emissions testing in Europe, the CA18DET was sold as the only available engine in the S13 chassis 200SX (Euro model) until replaced by the S14 in 1994. The Euro motors received the 4 port (high port) head and intake manifold, as well as revised ECCS ('Electronic Concentrated Control System') parameters. CA20E The SOHC 2.0 L (1974 cc) CA20E produces 105 hp (78 kW) and 120 lbft (160 Nm). Bore is 3.33 in (84.5 mm) and stroke is 3.46 in (88 mm). It was used from August, 1981 through 1991. Fuel was delivered via Multiport Fuel Injection.

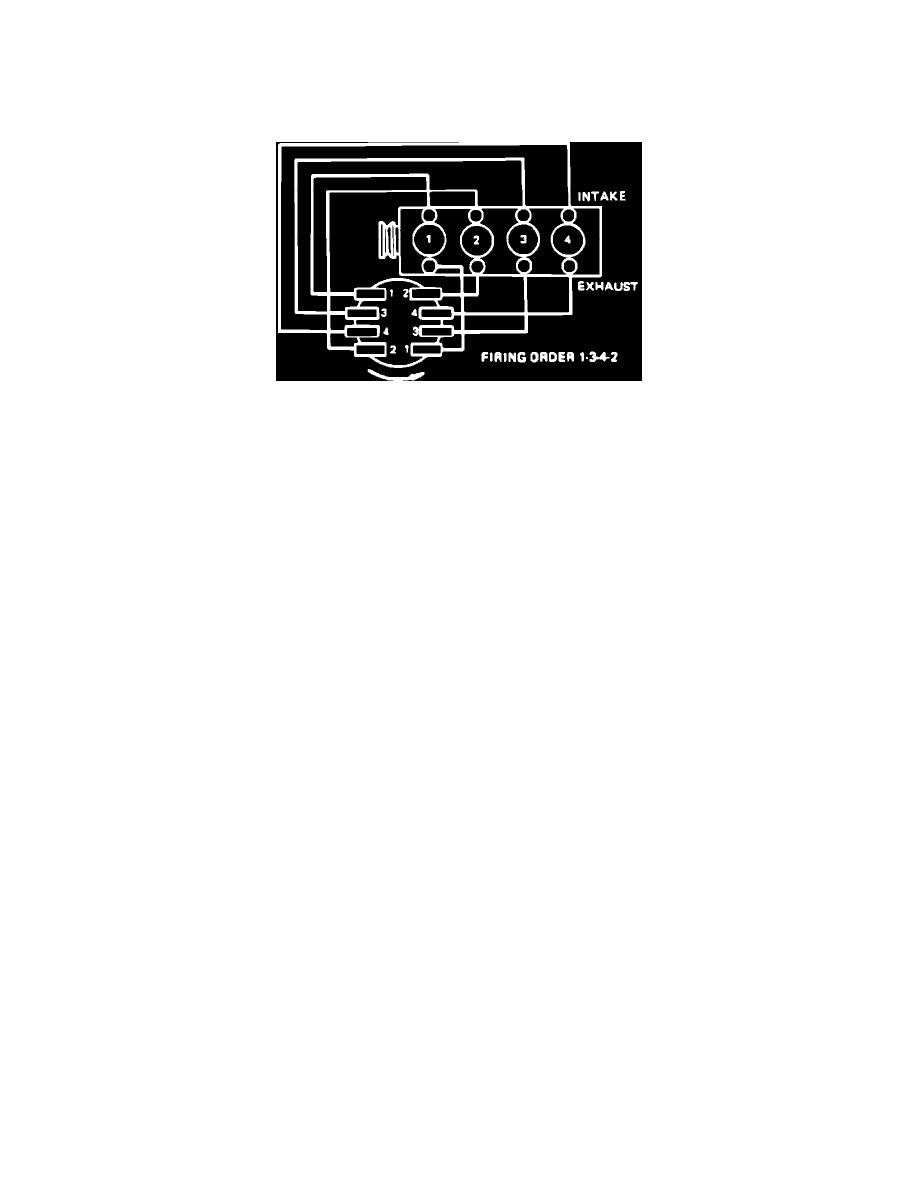

Dual sparkplugs per cylinder were used in some variants of this engine for enhanced combustion efficiency, called. It was used in the following vehicles:. 1984-1988 (US & Canada) / (Australia). 1986-1992 R31/U12 (Australia).

1984-1990. 1982-1988 Stanza Wagon (US)/ Multi (Canada) M10. 1987-1989 U12 (and was replaced by the SR20DE in the Series 2 U12 Bluebirds). 1988-1990 T72. 1986-1991 CA20S The CA20S is a SOHC 2.0 L (1974 cc) engine produced from 1982 through 1987.

Toyota Engine Manual

Bore is 3.33 in (84.5 mm) and stroke is 3.46 in (88 mm), and is fed by a. It produces a peak power of 102 hp (76 kW) at 5,200 rpm and has a peak torque rating of 160 N⋅m (120 ft⋅lbf) at 3,600 rpm. Applications:. M11/M12 Europe. Series 3 1985-1986 (Australia). U11 Estate 1985-1990 (Europe). T12 1985-1988 (Europe).

(C32)1984-1990 (No twinspark). GL and GLE (R31) (106 hp). 1983–1987 / (110 PS at 5,600 rpm). / Vanette Largo C22/GC22 Model, Japan CA20DE/CA20DET/CA20T/CA20ET There was never a factory-produced twin-cam CA 2.0L motor, nor a turbo version.

Toyota Engine Manual Download

However the blocks are similar, and it is possible to fit the DOHC CA18DE/T twincam head to the SOHC CA20 block. However the DOHC/SOHC manifolds are different and the timing pulley/belts are not compatible. Despite this, CA20DET turbos have been built. Tomei and JUN of Japan produced 2 litre stroker kits for the CA18. Also companies Norris Designs and Spool Imports produces CA20 stroker kits as well as a CA20 engine. External links Wikimedia Commons has media related to. See also.
